OpenVox IX210 Unified Communication Server, 2U IPPBX with 2 PCIe cards Slots for OpenVox Analog, BRI, PRI, GSM or Transcoding interfaces

Artikelnummer: 1514

EAN:

HAN: IX210

The IX210 equipped with a dual core 1.86GHz Intel processor that can support up to 300 sip extensions and 120 concurrent calls. What’s more, the IX210 comes with a dark blue front panel that simply makes it unique in color.

Elastix enterprise VoIP PBX Sofware Preloaded
Click here to visit the elastix.org website

Kategorie: OpenVox

Netzteil
Vorinstallierte Open Source IP PBX Option

1.861,80 € (1.605,00 € netto)

inkl. 16% USt. , zzgl. Versand (Parcel)

momentan nicht verfügbar


Elastix enterprise VoIP PBX Sofware Preloaded
Click here to visit the elastix.org website

IX210 is an upgrade version of IX132, an open source asterisk-based complete IPPBX solution for SMB. With affordable price, users may easily setup their customized IPPBX.

OpenVox IX210 is a standard 19" 2U appliance. It allows users to integrate up to 2 pieces of OpenVox PCI-E telephony interface cards, with any combinations of analog, BRI, PRI, GSM or transcoding interfaces. The optional hardware RAID 1 support provides better data backup for your system. The optional HDD case provides the possibility for hot plug function to the storage device. When RAID1 is installed, thus users can see the status of the storage devices from a GUI and then simply replace a backup HDD whenever needed without opening the appliance.IX210 has a design of LCD. It's convenient for you to check the IP address, System Load and so on. What's more, the IX210 provides optional redundant power supply.

The IX210 supports comprehensive protocol processing, including SIP, H.323 protocols in IP side and BRI, PRI, SS7, GSM and some protocols transcoding in CPE. Taking the full advantages of open source platform, the IX210 will be preloaded with Elastix®, PBX in a FlashTM, FreePBX or trixbox® IPPBX software.

Technical Specifications:

  • CPU: 1.86GHz Intel Atom Dual core D2550
  • 1 M L2 cache, 64 bit instruction
  • DRAM: 4 GB DDR3 SDRAM,
  • Storage: 1 SATA slot, 1 mSATA Socket
  • 2 USB 2.0 Ports
  • 2 Ethernet Ports (1000Mbps speed)
  • 2 PCIe sockets for voice cards and other expansion
  • 1 mini PCI-E socket for extension
  • 16 Mbit flash for AMI BIOS
  • Voltage range :100V/220V AC supply
  • 1 VGA port (DB15) for display interface
  • Header for LPC bus (use for flash recovery or I/O expansion)
  • Low EMI Emission level and high Electro Magnetic Susceptibility
  • Rack/Wall Mountable
  • Firmware: AMI_UEFI BIOS
  • LCD
  • Dimension: 44cm ×8.8cm ×37.2cm
  • Weight: 5200g (telephony cards not included)

Software & Platform:

  • Elastix®, trixbox®, PBX in a FlashTM, FreePBX

OpenVox Telephony Cards Options:

  • A400E/810E/1610E/2410E
  • B200E/400E
  • D130E/230E/430E
  • G400E/410E

Except A400E, B100E, G400E and G410E, all compatible cards can be applied together with EC module.

*Only two A2410E can be installed in IX210. For other configuration, please contact our sales manager for assistance.

Features

  • Modular Design for Telephony Cards Connection
  • Intel Atom Dual core D2550(1.86GHz)
  • Optional Hardware RAID 1 Support
  • Optional Pre-Loaded Open Source IPPBX System
  • Combination of analog, BRI, PRI, GSM or transcoding interfaces
  • Available for OEM
  • Attend Transfer
  • Blind Transfer
  • BLF Support
  • Blacklist
  • Callback
  • CDR (Call Detail Records)
  • Call Forward
  • Call Parking
  • Call Pickup
  • Call Routing
  • Call Transfer
  • Call Waiting
  • Caller ID
  • Conference
  • Define Office Time
  • DDNS
  • Dial by Name
  • DISA (Direct Inward System Access)
  • DIDs
  • Distinctive Ringtone
  • DND (Do Not Disturb)
  • FAX (T.38)
  • Firewall
  • Follow Me
  • IVR (Interactive Voice Response)
  • Intercom/Zone Intercom
  • Mobility Extension
  • Multi-language Prompt
  • Music On Hold
  • Music On Transfer
  • One touch record
  • OpenVPN
  • Phone Provisioning
  • PIN User(PIN Code Control)
  • Paging/Zone Paging
  • PPPoE
  • Queue
  • Ring Group
  • Route by Caller ID
  • Skype Integration (Sky2Sip)
  • SMS to Mail/Mail to SMS
  • Speed Dial
  • Static Route
  • Three Way Calling
  • Voicemail
  • Voicemail to Email
  • Voicemail Forwarding
  • Web Based Control Panel
  • Two Year Warranty
Download

Versandgewicht: 4,00 Kg
Artikelgewicht: 4,00 Kg
Durchschnittliche Artikelbewertung

Geben Sie die erste Bewertung für diesen Artikel ab und helfen Sie Anderen bei der Kaufenscheidung:

Kontaktdaten

Bitte melden Sie sich an, um einen Tag hinzuzufügen.

Analog Schnittstellenkarte
OpenVox A1610E01 16 Port Analog PCI-E card + 1 FXO400 module

OpenVox A1610E01 16 Port Analog PCI-E card + 1 FXO400 module

338,72 € * (292,00 € netto)
sofort verfügbar
OpenVox A1610E02 16 Port Analog PCI-E card + 2 FXO400...

OpenVox A1610E02 16 Port Analog PCI-E card + 2 FXO400 modules

483,72 € * (417,00 € netto)
sofort verfügbar
OpenVox A1610E03 16 Port Analog PCI-E card + 3 FXO400...

OpenVox A1610E03 16 Port Analog PCI-E card + 3 FXO400 modules

628,72 € * (542,00 € netto)
sofort verfügbar
OpenVox A1610E04 16 Port Analog PCI-E card + 4 FXO400...

OpenVox A1610E04 16 Port Analog PCI-E card + 4 FXO400 modules

772,56 € * (666,00 € netto)
sofort verfügbar
OpenVox A1610E10 16 Port Analog PCI-E card + 1 FXS400 module

OpenVox A1610E10 16 Port Analog PCI-E card + 1 FXS400 module

338,72 € * (292,00 € netto)
sofort verfügbar
OpenVox A1610E11 16 Port Analog PCI-Ecard + 1 FXS400 + 1...

OpenVox A1610E11 16 Port Analog PCI-Ecard + 1 FXS400 + 1 FXO400 modules

483,72 € * (417,00 € netto)
sofort verfügbar
OpenVox A1610E12 16 Port Analog PCI-E card + 1 FXS400 + 2...

OpenVox A1610E12 16 Port Analog PCI-E card + 1 FXS400 + 2 FXO400 modules

628,72 € * (542,00 € netto)
sofort verfügbar
OpenVox A1610E13 16 Port Analog PCI-E card + 1 FXS400 + 3...

OpenVox A1610E13 16 Port Analog PCI-E card + 1 FXS400 + 3 FXO400 modules

772,56 € * (666,00 € netto)
sofort verfügbar
OpenVox A1610E20 16 Port Analog PCI-E card + 2 FXS400...

OpenVox A1610E20 16 Port Analog PCI-E card + 2 FXS400 modules

482,56 € * (416,00 € netto)
sofort verfügbar
OpenVox A1610E21 16 Port Analog PCI-E card + 2 FXS400 + 1...

OpenVox A1610E21 16 Port Analog PCI-E card + 2 FXS400 + 1 FXO400 modules

628,72 € * (542,00 € netto)
sofort verfügbar
OpenVox A1610E22 16 Port Analog PCI-E card +2 FXS400 + 2...

OpenVox A1610E22 16 Port Analog PCI-E card +2 FXS400 + 2 FXO400 modules

772,56 € * (666,00 € netto)
sofort verfügbar
OpenVox A1610E30 16 Port Analog PCI-E card + 3 FXS400...

OpenVox A1610E30 16 Port Analog PCI-E card + 3 FXS400 modules

628,72 € * (542,00 € netto)
sofort verfügbar
OpenVox A1610E31 16 Port Analog PCI-E card + 3 FXS400 +1...

OpenVox A1610E31 16 Port Analog PCI-E card + 3 FXS400 +1 FXO400 modules

772,56 € * (666,00 € netto)
sofort verfügbar
OpenVox A1610E40 16 Port Analog PCI-E card + 4 FXS400...

OpenVox A1610E40 16 Port Analog PCI-E card + 4 FXS400 modules

772,56 € * (666,00 € netto)
sofort verfügbar
OpenVox A400E01 4 Port Analog PCI-E card + 1 FXO module

OpenVox A400E01 4 Port Analog PCI-E card + 1 FXO module

106,72 € * (92,00 € netto)
sofort verfügbar
OpenVox A400E02 4 Port Analog PCI-E card + 2 FXO modules

OpenVox A400E02 4 Port Analog PCI-E card + 2 FXO modules

148,48 € * (128,00 € netto)
sofort verfügbar
OpenVox A400E03 4 Port Analog PCI-E card + 3 FXO modules

OpenVox A400E03 4 Port Analog PCI-E card + 3 FXO modules

189,08 € * (163,00 € netto)
sofort verfügbar
OpenVox A400E04 4 Port Analog PCI-E card + 4 FXO modules

OpenVox A400E04 4 Port Analog PCI-E card + 4 FXO modules

229,68 € * (198,00 € netto)
sofort verfügbar
OpenVox A400E10 4 Port Analog PCI-E card + 1 FXS module

OpenVox A400E10 4 Port Analog PCI-E card + 1 FXS module

96,28 € * (83,00 € netto)
sofort verfügbar
OpenVox A400E11 4 Port Analog PCI-E card + 1 FXS + 1 FXO...

OpenVox A400E11 4 Port Analog PCI-E card + 1 FXS + 1 FXO modules

148,48 € * (128,00 € netto)
sofort verfügbar
OpenVox A400E12 4 Port Analog PCI-E card + 1 FXS + 2 FXO...

OpenVox A400E12 4 Port Analog PCI-E card + 1 FXS + 2 FXO modules

189,08 € * (163,00 € netto)
sofort verfügbar
OpenVox A400E13 4 Port Analog PCI-E card + 1 FXS + 3 FXO...

OpenVox A400E13 4 Port Analog PCI-E card + 1 FXS + 3 FXO modules

229,68 € * (198,00 € netto)
sofort verfügbar
OpenVox A400E20 4 Port Analog PCI-E card + 2 FXS modules

OpenVox A400E20 4 Port Analog PCI-E card + 2 FXS modules

148,48 € * (128,00 € netto)
sofort verfügbar
OpenVox A400E21 4 Port Analog PCI-E card+ 2 FXS + 1 FXO...

OpenVox A400E21 4 Port Analog PCI-E card+ 2 FXS + 1 FXO modules

189,08 € * (163,00 € netto)
sofort verfügbar
OpenVox A400E22 4 Port Analog PCI-E card + 2 FXS + 2 FXO...

OpenVox A400E22 4 Port Analog PCI-E card + 2 FXS + 2 FXO modules

229,68 € * (198,00 € netto)
sofort verfügbar
OpenVox A400E30 4 Port Analog PCI-E card + 3 FXS modules

OpenVox A400E30 4 Port Analog PCI-E card + 3 FXS modules

189,08 € * (163,00 € netto)
sofort verfügbar
OpenVox A400E31 4 Port Analog PCI-E card + 3 FXS + 1 FXO...

OpenVox A400E31 4 Port Analog PCI-E card + 3 FXS + 1 FXO modules

229,68 € * (198,00 € netto)
sofort verfügbar
OpenVox A400E40 4 Port Analog PCI-E card + 4 FXS modules

OpenVox A400E40 4 Port Analog PCI-E card + 4 FXS modules

229,68 € * (198,00 € netto)
sofort verfügbar
OpenVox A810E01 8 Port Analog PCI-E card + 1 FXO400 module

OpenVox A810E01 8 Port Analog PCI-E card + 1 FXO400 module

290,00 € * (250,00 € netto)
sofort verfügbar
OpenVox A810E02 8 Port Analog PCI-E card + 2 FXO400 modules

OpenVox A810E02 8 Port Analog PCI-E card + 2 FXO400 modules

435,00 € * (375,00 € netto)
sofort verfügbar
OpenVox A810E10 8 Port Analog PCI-E card + 1 FXS400 module

OpenVox A810E10 8 Port Analog PCI-E card + 1 FXS400 module

290,00 € * (250,00 € netto)
sofort verfügbar
OpenVox A810E11 8 Port Analog PCI-E card + 1 FXO400+1...

OpenVox A810E11 8 Port Analog PCI-E card + 1 FXO400+1 FXS400 modules

435,00 € * (375,00 € netto)
sofort verfügbar
OpenVox A810E20 8 Port Analog PCI-E card + 2 FXS400 modules

OpenVox A810E20 8 Port Analog PCI-E card + 2 FXS400 modules

435,00 € * (375,00 € netto)
sofort verfügbar
OpenVox AE1610E10 16 Port Analog PCI-E card + 1 FXS400...

OpenVox AE1610E10 16 Port Analog PCI-E card + 1 FXS400 Module + EC Module

578,84 € * (499,00 € netto)
sofort verfügbar
BRI ISDN Schnittstellenkarte
OpenVox B200E 2-Port ISDN BRI PCI Express Card *Asterisk...

OpenVox B200E 2-Port ISDN BRI PCI Express Card *Asterisk Ready; BRI Cologne Chip

250,56 € * (216,00 € netto)
sofort verfügbar
OpenVox B400E 4-Port ISDN BRI PCI Express Card *Asterisk...

OpenVox B400E 4-Port ISDN BRI PCI Express Card *Asterisk Ready; BRI Cologne Chip

290,00 € * (250,00 € netto)
Alter Preis: 320,16 €
sofort verfügbar
OpenVox BE200E 2-Port ISDN BRI PCI Express Card +...

OpenVox BE200E 2-Port ISDN BRI PCI Express Card + Hardware Echo Cancellation Module; BRI Cologne Chip

301,60 € * (260,00 € netto)
sofort verfügbar

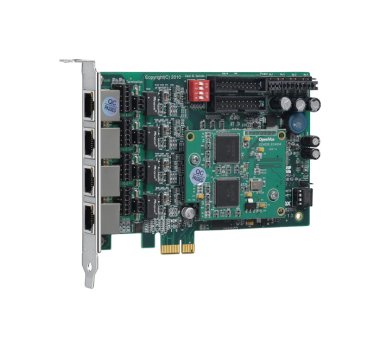

OpenVox BE400E 4-Port ISDN BRI PCI Express Card +...

OpenVox BE400E 4-Port ISDN BRI PCI Express Card + Hardware Echo Cancellation Module; BRI Cologne Chip

394,40 € * (340,00 € netto)
sofort verfügbar
PRI ISDN Schnittstellenkarte
OpenVox D130E 1 Port T1/E1/J1 PRI PCI-E card (Advanced...

OpenVox D130E 1 Port T1/E1/J1 PRI PCI-E card (Advanced Version, Half-length with Low profile option)

370,04 € * (319,00 € netto)
sofort verfügbar
OpenVox D230E 2 Port T1/E1/J1 PRI PCI-E card (Advanced...

OpenVox D230E 2 Port T1/E1/J1 PRI PCI-E card (Advanced Version, Half-length with Low profile option)

571,88 € * (493,00 € netto)
sofort verfügbar

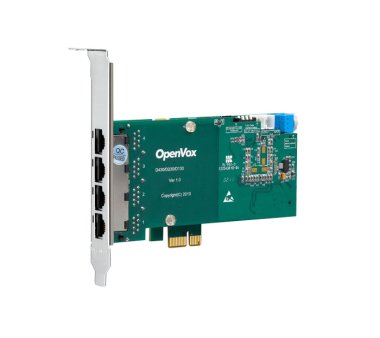

OpenVox D430E 4 Port T1/E1/J1 PRI PCI-E card (Advanced...
