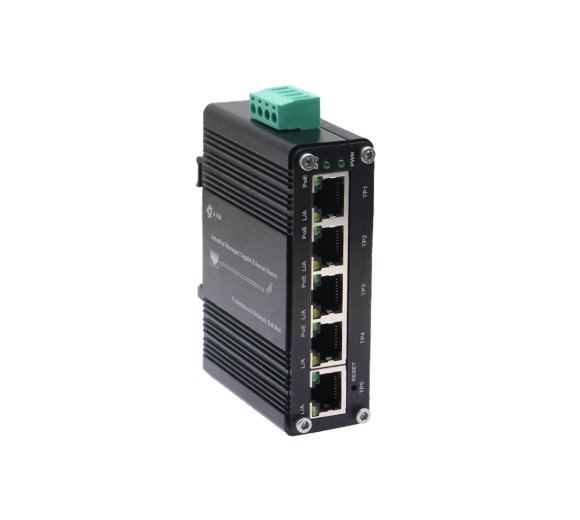

The LNK-IMC005GPM series is a mini industrial managed 4-port 10/100/1000BASE-T 802.3at PoE Ethernet switch with 1-port 10/100/1000T Ethernet and 12~48V DC wide input range. This managed industrial Ethernet switch meets critical industry standards. With reliable and easy operation against vibrations and shocks and a wide operating temperature range, it can be used in a variety of harsh environments.
The LNK-IMC005GPM can also be operated at standard operating temperatures from -40 to 80 °C. Mounted in rugged DIN-rail or wall-mountable enclosures with IP40 protection, these switches are perfect for harsh environments such as industrial networking and intelligent transportation systems (ITS). They are also suitable for many applications in the military and utility markets where environmental conditions exceed the specifications for commercial products.
Features
- 5 x 10/100/1000BASE-T ports
- 5 10/100/1000BASET RJ45 auto-MDI/MDI-X ports with IEEE 802.3at PoE+ (Port-1 to Port-4)
- 12~48V DC wide range power input
- Supports 802.3x Flow control
- Supports WEB Management
- Supports DIN-Rail and Wall-mount installation
- -40°C to 80°C (-40°F to 176°F) operating temperature
- Up to 120-watt PoE budget (48V DC),
- Up to 90-watt PoE budget (24V DC),
- Up to 60-watt PoE budget (12V DC)
How do I find out what kind of power supply I need?
You can calculate the required power of your power supply yourself, according to the following Formula: A=W/V
For example, if you use a 90 Watt power supply, the current at an input voltage of 24V is 90/24=3.75A.
Ethernet
Standards:
- IEEE 802.3 Ethernet
- IEEE 802.3u Fast Ethernet
- IEEE 802.3ab Gigabit Ethernet
- IEEE 802.3x Full-Duplex Flow Control
- IEEE 802.3az Energy Efficient Ethernet (EEE)
- IEEE 802.3at Power over Ethernet Plus PSE
- IEEE 802.3af Power over Ethernet Plus
Forward & Filtering Rate:
- 14,880pps (10Mbps)
- 148,800pps (100Mbps)
- 1,488,000pps (1000Mbps)
Packet Buffer:
Packet Length:
MAC Address Table:
Switch Fabric:
Exchange Property
- Backplane bandwidth: 20Gbps; Packet forwarding rate:14.88Mpps
Connector:
- 5 10/100/1000BASET RJ45 auto-MDI/MDI-X ports
- 4 ports with 802.3at PoE+ (Ports 1 to 4)
PoE (Power over Ethernet)
- Standard: IEEE802.3af/at
- Port: RJ45
- Power Pin Assignment: 4/5(+), 7/8(-)
- PoE Budget:
- Up to 120-watt PoE budget (48VDC)
- Up to 90-watt PoE budget (24VDC)
- Up to 60-watt PoE budget (12VDC)
Environmental
- Operating Temperature: -40°C to 80°C (-40°F to 176°F)
- Storage Temperature: -40°C to 85°C (-40°F to 185°F)
- Relative Humidity: 5% to 95% non-condensing
- MTBF: > 200,000 hrs
Electrical and Mechanical
- Input Power: 12~48VDC(Terminal Block)
- Power Consumption: <125W (Non-PoE<6W)
- Power Input Overload: Automatic Resettable
- Reverse Polarity: Present
- Reset Button: Support
- Dimensions (WxDxH): 95 x 70 x 29 mm
- Weight: 0.25KG
- Casing: Aluminum Case
- Mounting Options: DIN-Rail / Wall-mount
LED Indicators
- PWR: Power
- SPD: Data rate
- L/A: Link/Activity
- PoE: PoE Status
WEB Management Features
- System Settings: Device Info; Account Settings; Restoring; Reboot; Upgrade
- Port Management: Port Settings; Port Mirroring; Port Statistics; Rate Limit
- VLAN Settings: 802.1Q VLAN; PVID Settings; Hybrid Port
- QOS Settings: PrioritySelection;Scheduling Mode
- Loop Detection: Support
- Saving Settings: Get Configuration; Restore Configuration; Saving Configuration
- Default IP: 192.168.40.253
- Default User Name: admin
- Default Password: admin
| PoE OUT (PSE): |
PoE+ |
| Product Typ: |
Switch |
| Interfaces: |
Ethernet (RJ45) |
| Item weight: |
0,50 kg
|
|
PN:
|
LNK-IMC005GPM
|
|
Country of origin:
|
CN
|
|
TARIC-Code:
|
85176200
|
Product safety information
Manufacturer information:
e-LNK
5F, Building D South, Jinshenghui Science Park, No. 3
Guangdong
Shenzhen, China, 423300
info@e-linkchina.com
Responsible person:
VoIPDistri, Mathias Gottensträter
Im Hagen 3
Nordrhein-Westfalen
Halle, Deutschland, 33790
info@voipdistri.com
https://voipdistri.com
e-LNK is a manufacturer of network solutions for professional environments. The product portfolio of industrial network technology is suitable for demanding harsh industrial environments, withstands increased vibration requirements and operates reliably in the extended operating temperature range between - 40°C to 80°C (-40°F to 176°F).
Industrial Ethernet devices such as industrial switches and fibre optic media converters etc. are available as DIN rail mountings and the wide-range power supply is established as a standard in the industrial environment.
