RUT950 is highly reliable and secure LTE router for professional applications. Router delivers high performance, mission-critical cellular communication. RUT950 is equipped with connectivity redundancy through dual SIM failover. External antenna connectors make it possible to attach desired antennas and to easily find the best signal location.
RMS support
Manage your routers fleet remotely. With full support of centralized Teltonika Remote Management System you will be able to access, control and monitor all of your routers within a single platform. This will help you make better decisions for future installments and best-use practices.
Standard Package Contains
- Router RUT950 Global-Version (World Wide)
-
4G (LTE-FDD): B1, B2, B3, B4, B5, B7, B8, B12, B13, B18, B19, B20, B25, B26, B28
-
4G (LTE-TDD): B38, B39, B40, B41
-
3G: B1, B2, B4, B5, B6, B8, B19
-
2G: B2, B3, B5, B8
- Euro PSU
- 2 x LTE antennas (swivel, SMA male)
- 2 x WiFi antennas (swivel, RP-SMA male)
- Ethernet cable (1.5 m)
- QSG (Quick Start Guide)
- Packaging box
MOBILE
-
Mobile module 4G (LTE) - Cat 4 up to 150 Mbps, 3G - Up to 42 Mbps, 2G - Up to 236.8 kbps
-
SIM switch 2 SIM cards, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection
-
Status Signal strength, SINR, RSRP, RSRQ, Bytes sent/received
-
Bridge Direct connection (bridge) between mobile ISP and device on LAN
-
SMS SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP
-
Black/White list Operator black/white list
-
Multiple PDN (optional) Possibility to use different PDNs for multiple network access and services
-
Band management Band lock, Used band status display
WIRELESS
-
Wireless mode IEEE 802.11b/g/n, Access Point (AP), Station (STA)
-
WiFi WPA2-Enterprise (with external/internal Radius server), WPA2-PSK, WPA-PSK, WEP, MAC Filter
-
WiFi security WPA2-Enterprise - PEAP, TLS, TTLS. AES-CCMP, TKIP, Auto Cipher modes. Client separation
-
SSID SSID stealth mode and access control based on MAC address
-
WiFi users Up to 100 simultaneous connections
-
Wireless Hotspot Captive portal (Hotspot), internal/external Radius server, built in customizable landing page
ETHERNET
-

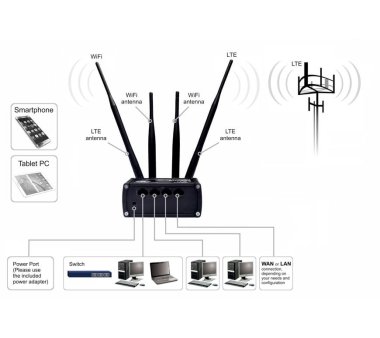

WAN 1 x WAN port (can be configured to LAN) 10/100 Mbps, comply IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX
-
LAN 3 x LAN ports, 10/100 Mbps, comply IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX
NETWORK
-
Routing Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2)
-
Network protocols TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SMNP, MQTT, Wake On Lan (WOL)
-
VoIP passthrough support H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
-
Connection monitoring Ping Reboot, Periodic Reboot, LCP and ICMP for link inspection
-
Firewall Port forward, traffic rules, custom rules
-
DHCP Static and dynamic IP allocation, DHCP Relay
-
QoS Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e
-
DDNS Supported >25 service providers, others can be configured manually
-
Network backup VRRP, Mobile, Wired and WiFi WAN options, each of which can be used as backup, using automatic Failover
-
Load balancing Balance your internet traffic over multiple WAN connections
-
NetSnapper (optional) Mobile connection management, data compression VPN client (not available in standard FW)
-
SSHFS (optional) Possibility to mount remote file system via SSH protocol (not available in standard FW)
SECURITY
-
Authentication Pre-shared key, digital certificates, X.509 certificates
-
Firewall Pre-configured firewall rules can be enabled via web-ui, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T
-
Attack prevention DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention ( SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
-
WiFi security WPA2-Enterprise – PEAP, EAP-TLS, TLS, TTLS. AES-CCMP, TKIP, Auto Cipher modes. Client separation
-
VLAN Port based and tag based VLAN separation
-
Mobile quota control Set up custom data limits for both SIM cards
-
WEB filter Blacklist for blocking out unwanted websites, whitelist for specifying allowed sites only
-
Access control Flexible access control of TCP, UDP, ICMP packets, MAC address filter
VPN
-
OpenVPN Multiple clients and server can be running simultaneously, 12 encryption methods
-
OpenVPN Encryption DES-CBC, RC2-CBC, DES-EDE-CBC, DES-EDE3-CBC, DESX-CBC, BF-CBC, RC2-40-CBC, CAST5-CBC, RC2-64-CBC, AES-128-CBC, AES-192-CBC, AES-256-CBC
-
IPsec IKEv1, IKEv2, supports up to 4 x VPN IPsec tunnels (instances), with 5 encryption methods (DES, 3DES, AES128, AES192, AES256)
-
GRE GRE tunnel
-
PPTP, L2TP Client/Server services can run simultaneously
-
Stunnel Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the programs' code
-
SSTP SSTP client instance support
MODBUS
MODBUS TCP SLAVE
MODBUS TCP MASTER
-
Supported functions 01, 02, 03, 04, 05, 06, 15, 16
-
Supported data formats 8 bit: INT, UINT; 16 bit: INT, UINT (MSB or LSB first); 32 bit float (Big endian, Big endian with byte-swapped, Little endian, Little endian with byte-swapped)
MONITORING & MANAGEMENT
-
WEB UI HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, event log, system log, kernel log
-
FOTA Firmware update from server, automatic notification
-
SSH SSH (v1, v2)
-
SMS SMS status, SMS configuration, send/read SMS via HTTP POST/GET
-
TR-069 OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem
-
MQTT MQTT Broker, MQTT publisher
-
SNMP SNMP (v1, v2, v3), SNMP trap
-
JSON-RPC Management API over HTTP/HTTPS
-
MODBUS MODBUS TCP status/control
-
RMS Teltonika Remote Management System (RMS)
SYSTEM CHARACTERISTICS
-
CPU Atheros Wasp, MIPS 74Kc, 550 MHz
-
RAM 128 MB, DDR2
-
FLASH memory 16 MB SPI Flash
FIRMWARE / CONFIGURATION
-
WEB UI Update FW from file, check FW on server, configuration profiles, configuration backup, restore point
-
FOTA Update FW/configuration from server
-
RMS Update FW/configuration for multiple devices
-
Keep settings Update FW without losing current configuration
FIRMWARE CUSTOMIZATION
-
Operating system RutOS (OpenWrt based Linux OS)
-
Supported languages Busybox shell, Lua, C, C++
-
Development tools SDK package with build environment provided
INPUT/OUTPUT
-
Input 1 x Digital non-isolated input (on 4 pin power connector)
-
Output 1 x Digital open collector output (30 V, 300 mA, on 4 pin power connector)
-
Events SMS, EMAIL, RMS
POWER
-
Connector 4 pin industrial DC power socket
-
Input voltage range 9 – 30 VDC (4 pin industrial socket), reverse polarity protection; surge protection >31 VDC 10us max
-
PoE (passive) Passive PoE over spare pairs. Possibility to power up through LAN port, not compatible with IEEE802.3af and 802.3at standards
-
Power consumption < 2 W idle, < 7 W Max
PHYSICAL INTERFACES (PORTS, LEDS, ANTENNAS, BUTTONS, SIM)
-
Ethernet 4 x RJ45 ports, 10/100 Mbps
-
I/O’s 2 Inputs/Outputs pin on 4 pin power connector (available from HW revision 1600)
-
Status LEDs 1 x bi-color connection status LED, 5 x connection strength LEDs, 4 x LAN status LEDs, 1 x Power LED
-
SIM 2 x SIM slots (Mini SIM - 2FF), 1.8 V/3 V, external SIM holders
-
Power 4 pin power connector with 2 pins for Input/Output
-
Input/Output 2 programmable Inputs/Outputs
-
Antennas 2 x SMA for LTE, 2 x RP-SMA for WiFi antenna connectors
-
Reset Reset/restore to default button
PHYSICAL SPECIFICATION
-
Casing material Aluminium housing, plastic panels
-
Dimensions 50 mm x 100 mm x 110 mm (H x W x D)
-
Weight 280 g
-
Mounting options DIN rail (can be mounted on two sides), flat surface placement
OPERATING ENVIRONMENT
-
Operating temperature -40 °C to 75 °C
-
Operating humidity 10% to 90% non-condensing
-
Ingress Protection Rating IP30
-
MTBF 270000 h
REGULATORY & TYPE APPROVALS
-
Regulatory CE/RED, FCC, IC/ISED, EAC, RCM, PTCRB, RoHS, WEEE, Wi-Fi Alliance
EMI IMMUNITY
-
Standards Draft EN 301 489-1 V2.2.0, Draft EN 301 489-17 V3.2.0, Draft EN 301 489-19 V2.1.0, Draft EN 301 489-52 V1.1.0 FCC 47 CFR Part 15B (2018), ANSI C63.4 (2014)
-
ESD EN61000-4-2:2009
-
RS EN 61000-4-3:2006 + A1:2008 + A2:2010
-
EFT EN 61000-4-4:2012
-
Surge immunity (AC Power Line) EN 61000-4-5:2006
-
Surge immunity (Ethernet ports) EN 61000-4-5:2014, clause 7.1 of ITU-T K21
-
Transient and surges ISO 7632-2:2004
-
CS EN 61000-4-6:2009
-
DIP EN 61000-4-11:2004
RF
-
Standards EN 300 328 V2.1.1, EN 301 511 V12.5.1, EN 301 908-1 V11.1.1, EN 301 908-2 V11.1.1, EN 301 908-13 V11.1.1 AS/CA S042.1:2018, AS/ACIF S042.3:2005, AS/CA S042.4:2018, AS/NZS 4268:2017 FCC 47 CFR Part 15C, FCC 47 CFR Part 22H, FCC 47 CFR Part 24E, FCC 47 CFR Part 27
SAFETY
-
Standards IEC 60950-1:2005 (Second Edition) + Am 1:2009 + Am 2:2013 AS/NZS 60950.1:2015 EN 50665:2017, EN 62311:2008 FCC 47 CFR Part 1 1.1310
ENVIRONMENTAL
-
Ingress Protect LST EN 60529:1999+A1+AC:2002
-
Vibration Class guideline-DNVGL-CG-0339:2016
EN 60068-2-6:2008
