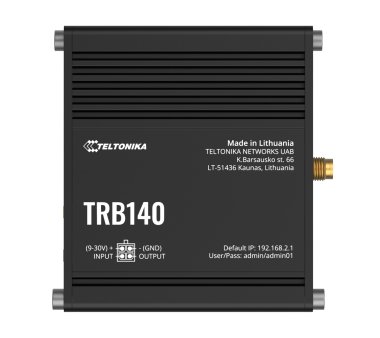

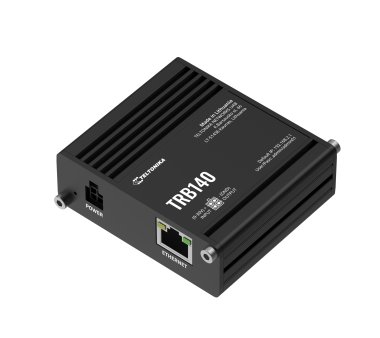

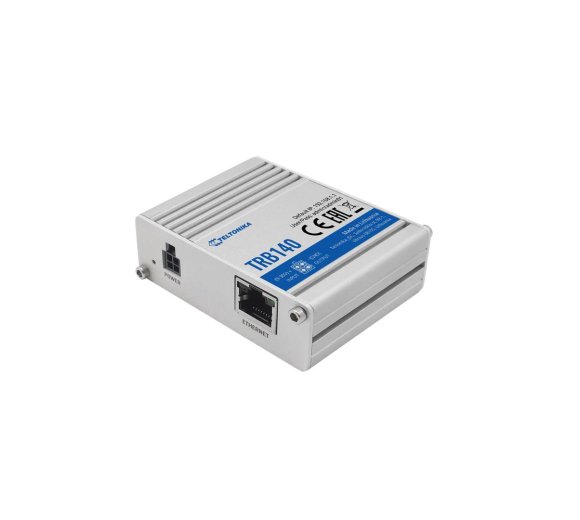

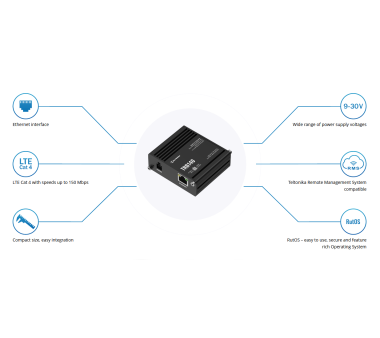

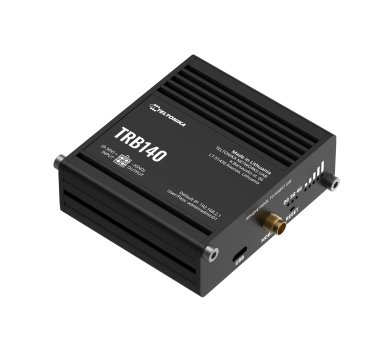

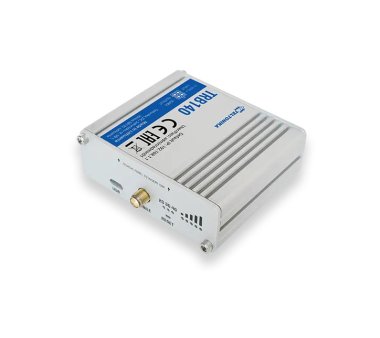

TRB14x device family is designed to provide direct access to various devices from the network.
It contains a high performance ARM Cortex-A7 1.2GHz processor and 256 megabytes of RAM. It is equipped with mission-critical LTE capabilities and a Linux environment ofering high degree of customization. Devices in the TRB family come with either one of Ethernet, RS232 or RS485 ports ofering a specialized solution to a particular problem. TRB family devices are designed to be small, lightweight and energy efcient - allowing you to do IoT projects with ease.
SPECIFICATIONS
-

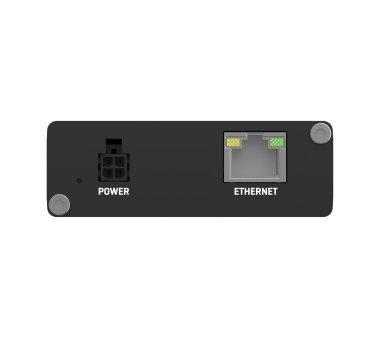

Ethernet
RJ45 socket, 10/100 Mbps
Ethernet port with auto MDI/MDIX
-
Package includes:
- Power cable
- Magnetic type LTE antenna
- Ethernet cable
- QSG (Quick Start Guide)
- 1 x hex key
- TRB141 board in Alumium Housing
- Packaging box
Hardware
- ARM Cortex-A7 1.2 GHz CPU
- 256 MBytes RAM (50 Mbytes available for users)
- 512 MBytes Flash (70 Mbytes available for users)
- 4 pin industrial DC power socket

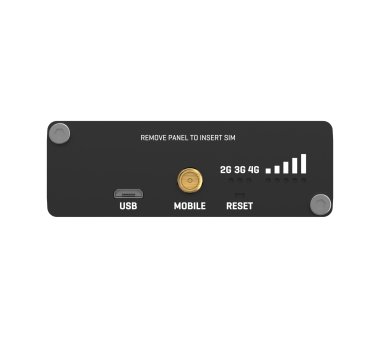

- Dual SIM (2FF)
- 1 x SMA for LTE
- Micro-USB connector
- Reset button
- Power, signal, network and data status LEDs
Electrical, Mechanical & Environmental
- Input voltage range 9 - 30 VDC
- Operating temperature -40 C to 75 C
- Storage temperature -45 C to 80 C
- Operating humidity 10% to 90% non-condensing
- Storage humidity 5% to 95% non-condensing
- Dimensions 60 mm x 70 mm x 18 mm
- Weight 100g
Cellular Specifications
LTE: LTE CAT4 up to 150 Mbps DL / LTE CAT4 up to 50 Mbps UL
UMTS/DC-HSPA+: DC-HSDPA up to 42 Mbps (DL) / HSUPA up tp 5.76 Mbps (UL
GSM/GPRS/EDGE: EDGE up to 236.8 kbps DL, 236.8 kbps UL
Supported Bands
Europe, the Middle East, Africa, Korea, Thailand, India
- FDD-LTE: B1 (2100 MHz)/B3 (1800 MHz)/B5 (850 MHz)/B7 (2600 MHz)/B8 (900 MHz)/B20 (800 MHz)
- TDD-LTE: B38 (2600 MHz)/B40 (2300 MHz)/B41 (2500 MHz)
- WCDMA: B1 (2100 MHz)/B5 (850 MHz)/B8 (900 MHz)
- GSM/EDGE: 900/1800 MHz
