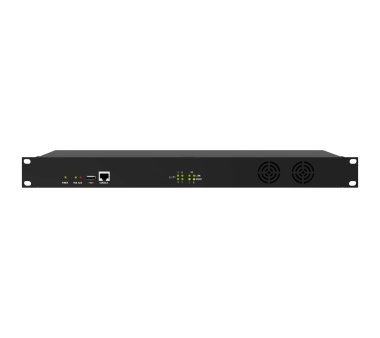

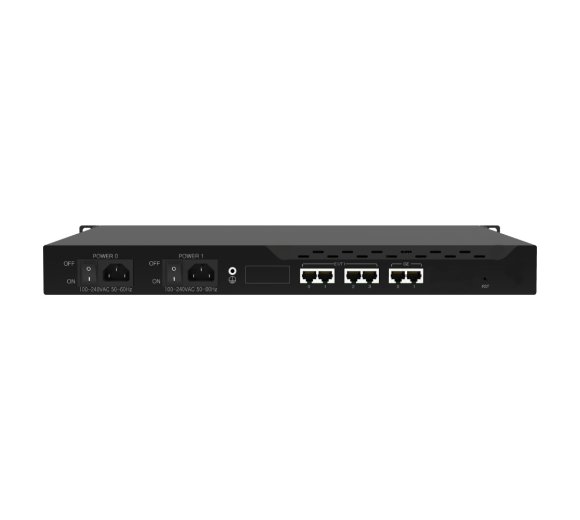

MTG1000 is a low-density, cost-effective E1/T1 Digital VoIP Gateway, designed for interconnecting PSTN and IP networks. The MTG1000 series, with 1 or 2 E1/T1 ports in a 1U chassis, combines powerful hardware and efficient DSP processing to ensure high-performance voice-to-IP conversion even under full load. It supports SIP-to-SIP interworking and is fully interoperable with mainstream VoIP platforms as well as PSTN networks using ISDN PRI, SS7, or R2 MFC protocols.
This compact gateway offers up to 60 simultaneous calls, multiple SIP trunk support, flexible routing, and dual power supplies for high reliability. It is ideal for connecting legacy PBXs, service provider PSTN networks, and modern IP-based telephony systems.
Key Advantages:
– Cost-effective VoIP trunk gateway
– 1/2 E1/T1 ports in 1U chassis
– Dual Power Supplies
– Up to 60 simultaneous calls
– Flexible routing and multiple SIP trunks
– Fully compatible with mainstream VoIP platforms
PSTN Protocol Support:
– ISDN PRI
– ISDN SS7 with SS7 link redundancy
– R2 MFC
– T.38 and Pass-through fax
– Modem and POS support
– Q.sig support for PBX integration
Management and Configuration:
– Intuitive Web GUI
– SNMP support (v1/v2/v3)
– Automated provisioning
– Dinstar Cloud Management System
– Configuration backup & restore
– Advanced debug tools
Features:
- 1/2 E1s/T1s, RJ48 interface
- Codecs: G.711 a/μ law, G.723.1, G.729A/B, iLBC 13k/15k, AMR
- Dual Power Supplies
- Silence Suppression
- 2 GE Ports
- Comfort Noise
- SIP v2.0
- Voice Activity Detection
- SIP-T, RFC3372, RFC3204, RFC3398
- Echo Cancellation (G.168), up to 128ms
- SIP Trunk Work Mode: Peer/Access
- Adaptive Dynamic Buffer
- SIP/IMS Registration: up to 256 SIP Accounts
- Voice & Fax Gain Control
- NAT: Dynamic NAT, Rport
- FAX: T.38 and Pass-through
- Flexible Route Methods: PSTN-PSTN, PSTN-IP, IP-PSTN
- Support for Modem/POS
- Intelligent Routing Rules
- DTMF Mode: RFC2833 / SIP Info / In-band
- Call Routing based on Time
- Clear Channel / Clear Mode
- Call Routing based on Caller/Called Prefixes
- ISDN PRI, Q.sig
- 256 Route Rules per Direction
- Signaling 7 / SS7: ITU-T, ANSI, ITU-CHINA, MTP1/MTP2/MTP3, TUP/ISUP
- Caller and Called Number Manipulation
- R2 MFC
- Local / Transparent Ring Back Tone
- Web GUI Configuration
- Overlapping Dialing
- Data Backup / Restore
- Dialing Rules: up to 2000
- PSTN Call Statistics
- PSTN grouped by E1 Port or E1 Timeslot
- SIP Trunk Call Statistics
- IP Trunk Group Configuration
- Firmware Upgrade via TFTP / Web
- Voice Codecs Group
- SNMP v1/v2/v3
- Caller and Called Number White Lists
- Network Capture
- Caller and Called Number Black Lists
- Syslog: Debug, Info, Error, Warning, Notice
- Access Rule Lists
- Call History Records via Syslog
- IP Trunk Priority
- NTP Synchronization
- RADIUS
- Centralized Management System
| Shipping weight: |
3,00 kg
|
| Item weight: |
2,00 kg
|
|
PN:
|
MTG1000-2-E1/T1
|
|
Country of origin:
|
CN
|
