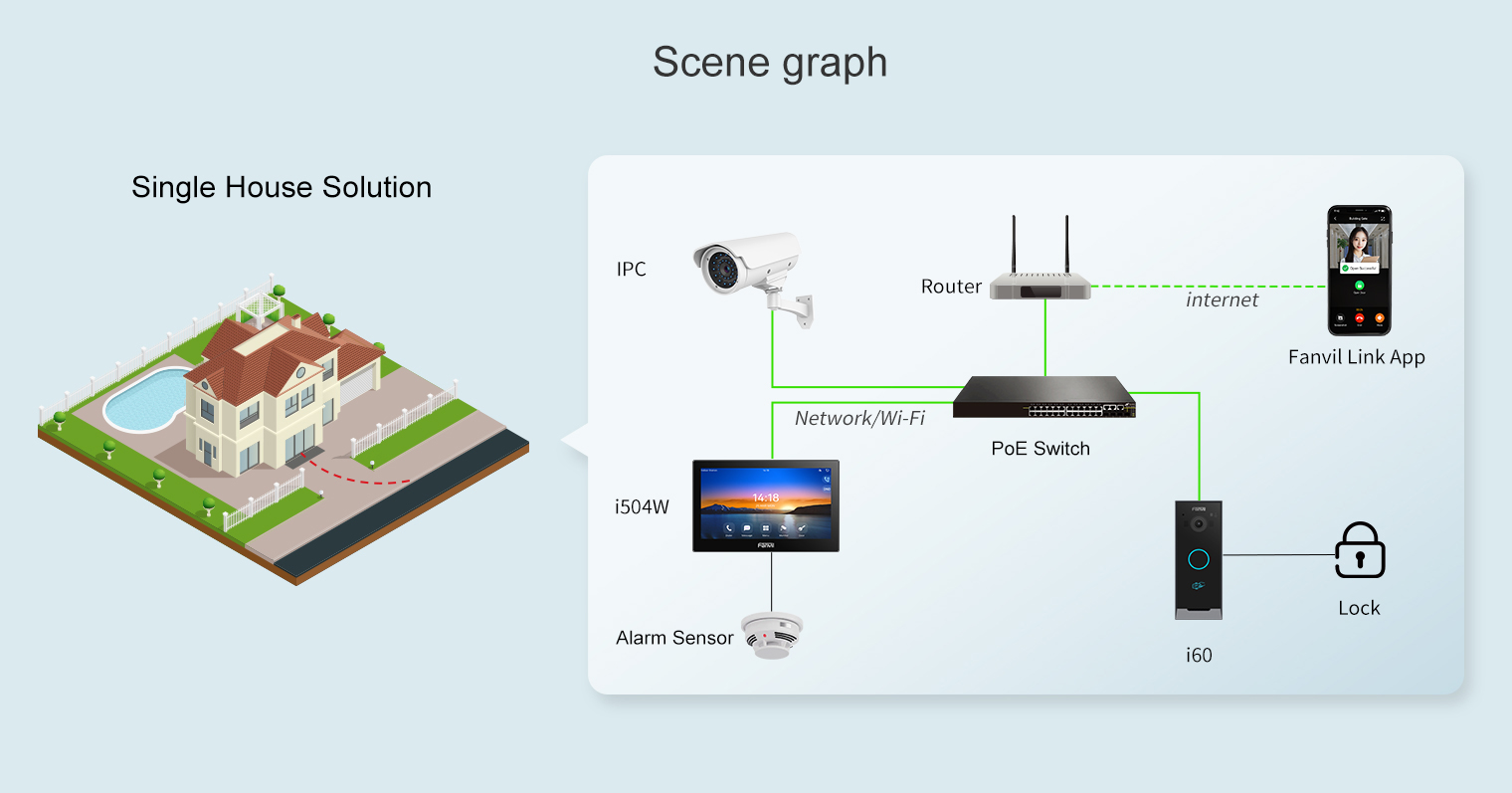

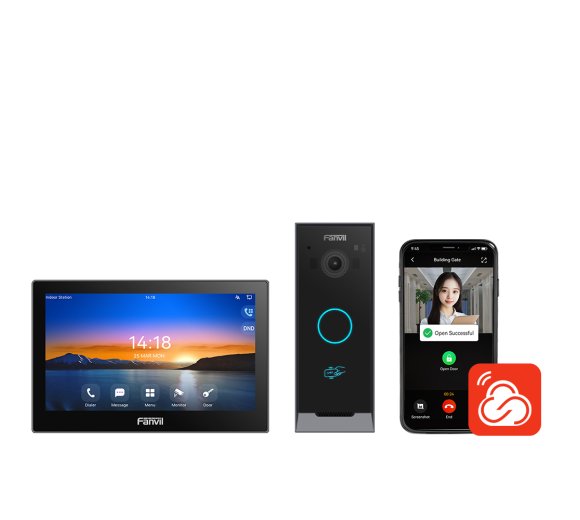

Fanvil VIK-01 Video Intercom Kit integrates the i504W SIP Indoor Station, i60 Video Door Phone, and Fanvil Link App, ideal for villas and single-family homes. Users can make HD video calls and remotely unlock doors via the indoor unit or Fanvil Link App, with multiple unlocking options and 2.4G/5G Wi-Fi support. Achieve plug-and-play deployment with simple power and network connections.
Main Features

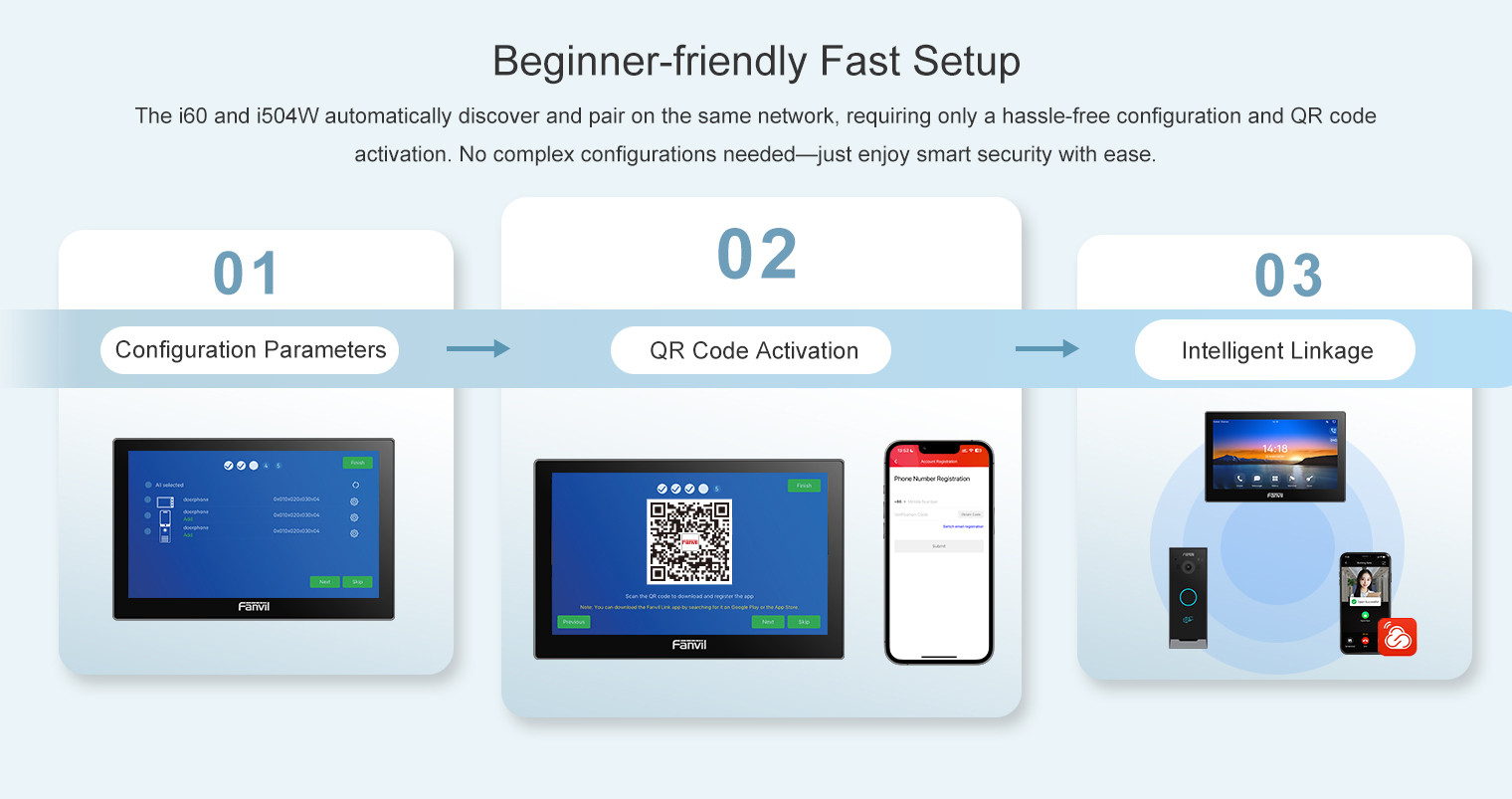

- Plug-and-play, quickly deployment.

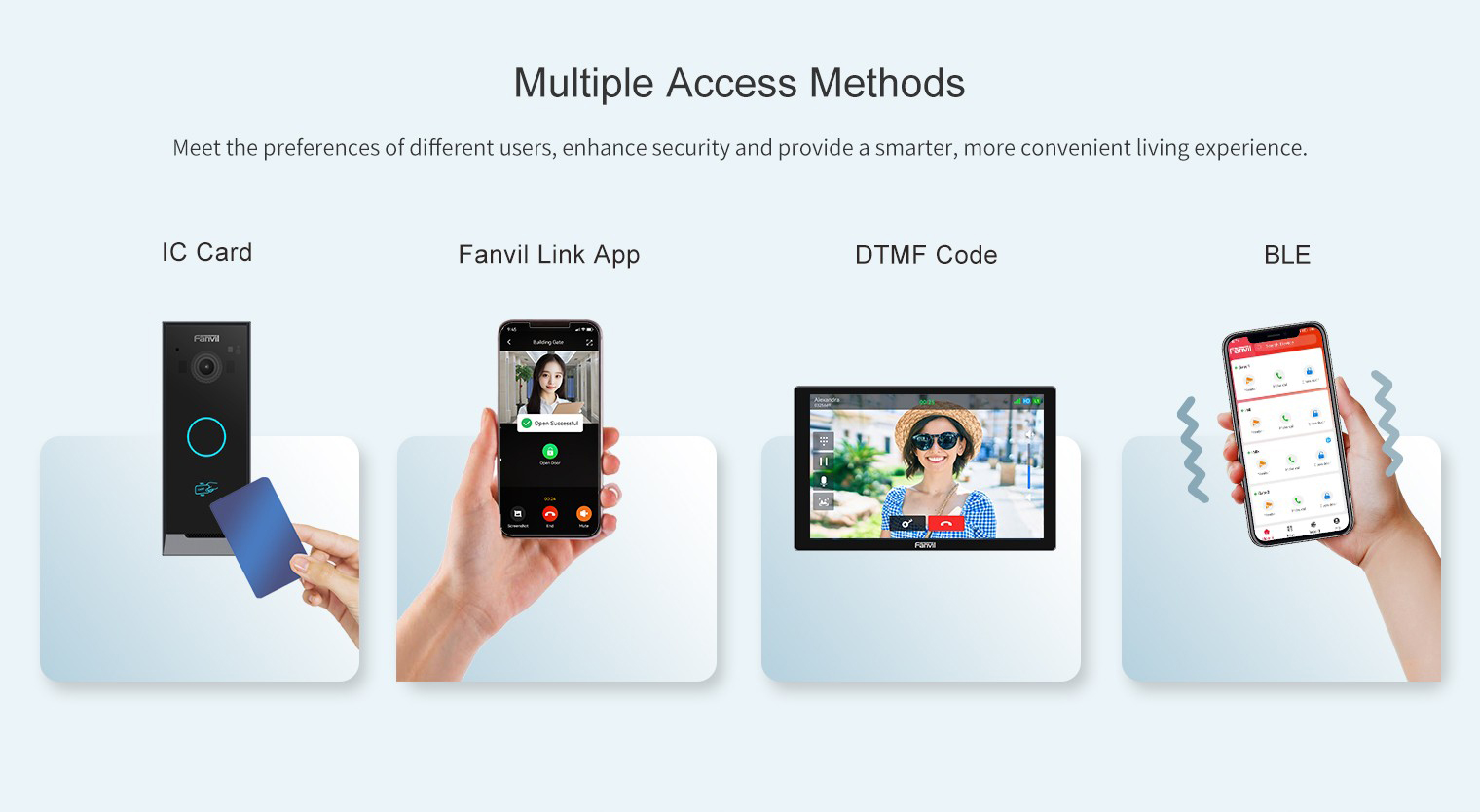

- Flexible door access methods.
- Monitor door phone camera footage on both mobile and indoor station.
- Remote door opening anytime, anywhere.
- Support one-touch calling.
- CCTV integration

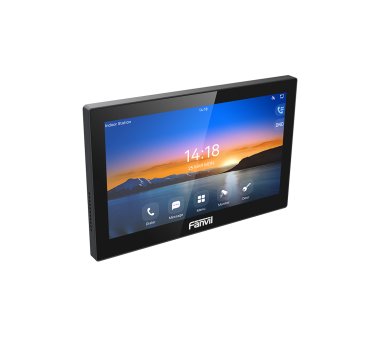

Fanvil i504W Specifications
Screen: 7-inch color capacitive touch screen 1024×600
Body: ABS
Speaker: 2W
Wi-Fi: 2.4G/5G（i504W Supported）
Interface: 8×Alarm input, 1×Short circuit output, 1×Doorbell input, 1×RS485(Reserved)
Network: 10/100 Mbps adaptive
Power Supply: DC 12V / 1A
PoE: 802.3af Power Consumption (PoE: 3.65~6.64W)
Adapter: 2.71~5.53W
Working Temperature: -10℃~50℃
Storage Temperature: -40℃~80℃
Working Humidity: 10%~90%
Size (LWH): 177.38x113.99x22.5mm
Installation: Wall-mounted

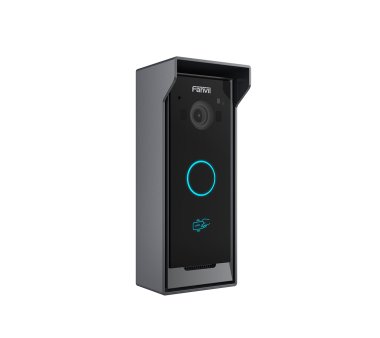

Fanvil i60 Specifications
Keyboard: 1 Speed-dial Button
Body: ABS+PC
Colors: Panel: black, Housing: Gunmetal
Sensor: 1/2.9-inch，CMOS
Camera: 2 Mpx, Support infrared
Viewing Angle: 140°(FOV) 100°(Horizontal) 57°(Vertical)
Output video: H.264 (Baseline, Main Profile)
Light Sensitivity: 0.1Lux (Infrared/White light fill light)
Card Storage: 1,0000
Power Consumption: PoE:1.63~6.93W / Adapter: 1.51~6.16W
Power Supply: DC 12V/1A, PoE 802.3af Class 3
Working Temperature: -40℃~+70℃
Storage temperature: -40℃~+70℃
Size of the Panel (LWH): 50*130*30mm
IP / IK Level: IP65
Installation: Wall-mounted / Rain cover
| Door Features: |
SIPVideo H.2641 Button |
| Shipping weight: |
0,80 kg
|
| Item weight: |
0,80 kg
|
|
PN:
|
VIK-01
|
|
Country of origin:
|
CN
|
|
TARIC-Code:
|
85176920
|
